Gabion Hexagonal Mesh Cage Netting Machine
Heavy duty hexagonal wire gabion mesh making machine
Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
The product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.
We can produce machinery according to customers'requirements. For example, the normal gabion mesh twisting is three times ,length is 35 mm . We can produce 5 times twisting gabion mesh ,length canbe 50-55 mm.
Usage:
1. )It is widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes parcel wire mesh.
2. )It can be used to make stone wire mesh cages, which are widely used to protect and support the seawall, hillsides, road and bridge
Technical Parameter
| Model | Mesh size | Width | Wire diameter | Spindle Speed | Twist | Power | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) |
| JT-80 | 60X80 | 2300 3300 4300 | 1.6-3.2 | 25 | 3 | 11 15 22 | 165 |
| JT-100 | 80X100 | 1.6-4.0 | 3 | 195 |
| JT-120 | 100X120 | 1.6-4.0 | 3 | 225 |
| JT-150 | 120X150 | 1.6-4.2 | 20 | 3 | 255 |
Machine production line:
| Standard machine |
| Main machine | 1 Set |
| Wire tension device | 1 Set |
| Netting winging machine | 1 Set |
| Spiral Coiling Machine | 1 Set |
| Wire pay-off with frame | 1 Set |

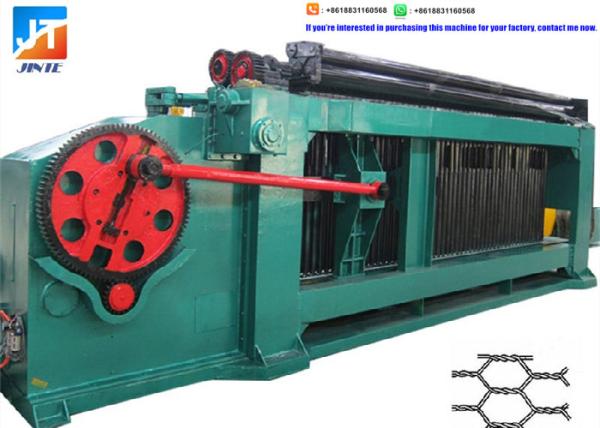

Horizontal type gabion wire mesh machine
Specification:
| Machine type | Straight twisted type 3 twists |
| Mesh size | 60x80mm 80x100mm 100x120mm |
| Wire diameter | 1.0-2.8mm |
| Mesh width | 1-4.0M |
| Capacity | 80-150m/h |
| Motor power | 7.5kw |
| Outsize | 3650*1900*1300mm |
| Voltage | 380v,3phase,50hz |
| Weight | 5.5-7.5 tons |
PLC Control Straight and Reverse Hexagonal Wire Mesh Machine
Raw material: Galvanized steel wire,low carbon steel wire,stainless steel wire,etc.
Advantage:
1.PLC control and touch screen.More technical parameters can be set and adjusted on the touch screen.
Very convenient for workers to operate.
2.More accurate,Less Wire and mesh broken.Once wire or mesh broken,alarm will reflect and machine will stop automatically.
3.Lubricating system makes the machine to work more easily.
4.Speed more fast and production capacity imporved more.
