Heavy Duty Hexagonal Wire Netting Machine River Mattress Use

  • 1
  • 2

Brand Name : JINTE

Model Number : JT-G

Certification : ISO CE

Place of Origin : China

MOQ : 1 set

Price : USD 7000-15000 / set

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10 set / month

Delivery Time : 30 days

Packaging Details : Packed in container with fixed iron rope and wooden stick. Necessarily, the machine will also be paint oil and plastic film. Train transport or sea way are both ok.

After-sales service provided : Engineers available to service machinery overseas

Color : According to customer's request

Application : Gabion box,gabion mesh making

Product name : Gabion Mesh Machine

Width : max 2300mm/3300mm/4300mm

Mesh size : 100x120mm

Usage : making gabion box

Type : Fully Automatic

Warranty : 1 Year

Mesh width : 4300mm / 4700mm / 5300mm etc

Contact Now

Heavy Duty Hexagonal Wire Gabion Mesh Making Machine For Stone Wall Or River Mattress Use

GABION MESH MACHINE PRODUCT INTRODUCE

Gabion mesh machine is also called heavy duty hexagonal wire mesh machine or gabion box machine, which is to produce the hexagonal wire mesh for reinforcement stone box use to protect and support the seawall,hillsides,road and bridge,reservoirs and other civil engineering.

Our machine has several models for different sizes of meshes and the maximum netting width is up to 4500mm. We can accept any special orders from clients.

GABION MESH MACHINE SPECIFICATION

Model Mesh size Width Wire diamater Spindle Speed Power of motor Theoretic output
(mm) (mm) (mm) (r/min) (kw) (m/h)
JT-G23-60 60X80 2300 1.6-3.0 25 11 165
JT-G23-80 80X100 2300 1.6-3.0 25 11 195
JT-G23-100 100X120 2300 1.6-3.2 25 11 225
JT-G23-120 120X150 2300 1.6-3.5 30 11 255
JT-G33-60 60X80 3300 1.6-3.0 25 15 165
JT-G33-80 80X100 3300 1.6-3.2 25 15 195
JT-G33-100 100X120 3300 1.6-3.5 25 15 225
JT-G33-120 120X150 3300 1.6-3.8 20 15 255
JT-G43-60 60X80 4300 1.6-2.8 25 22 165
JT-G43-80 80X100 4300 1.6-3.0 25 22 195
JT-G43-100 100X120 4300 1.6-3.5 25 22 225
JT-G43-120 120X150 4300 1.6-3.8 20 22 255

GABION MESH MACHINE PRODUCT ADVANTAGE

1. High production, 840 square meters per hour.


2. International famous PLC and touch screen control panel .


3. Imported Electronics.


4. Welding crossbeam for stronger construction.


5. Frequency adjustable motor.


6. Weaving one net or several net with the same machine.


7. Complete line of gabion mesh production.

GABION MESH MACHINE PACKING

The normal package is Plastic packing wire rope of main machine is fixed in container.

Heavy Duty Hexagonal Wire Netting Machine River Mattress Use


Product Tags:

River Mattress Hexagonal Wire Netting Machine



Gabion Wire Mesh Making Machine



25r/min Hexagonal Wire Netting Machine


China Heavy Duty Hexagonal Wire Netting Machine River Mattress Use factory

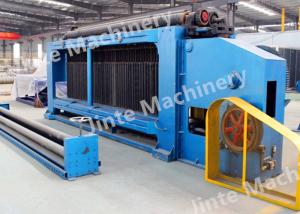

Heavy Duty Hexagonal Wire Netting Machine River Mattress Use Images
